Mini Split Condensate Pumps P16/32

Short Description:


Silent Running, Reliable and Durable

·Super quiet design, Unequalled operating sound level
·Built-in safty switch, improve reliability
·Exquisite&compact design, Suitable for different spaces
·Built-in LEDs provide visual operating feedback

Product Detail



Product Tags

Mini size, maximum power, silent and durable operation, long service life. Since the launch of the Pioneer series. WIPCOOL has become one of the global leaders for MINI condensate pumps. Mini pumps operate on a probe switch mechanism which detects the presence of water in the drain pan, activating the pump. WIPCOOL supply the most complete and high performance range of mini pumps in the worldwide.

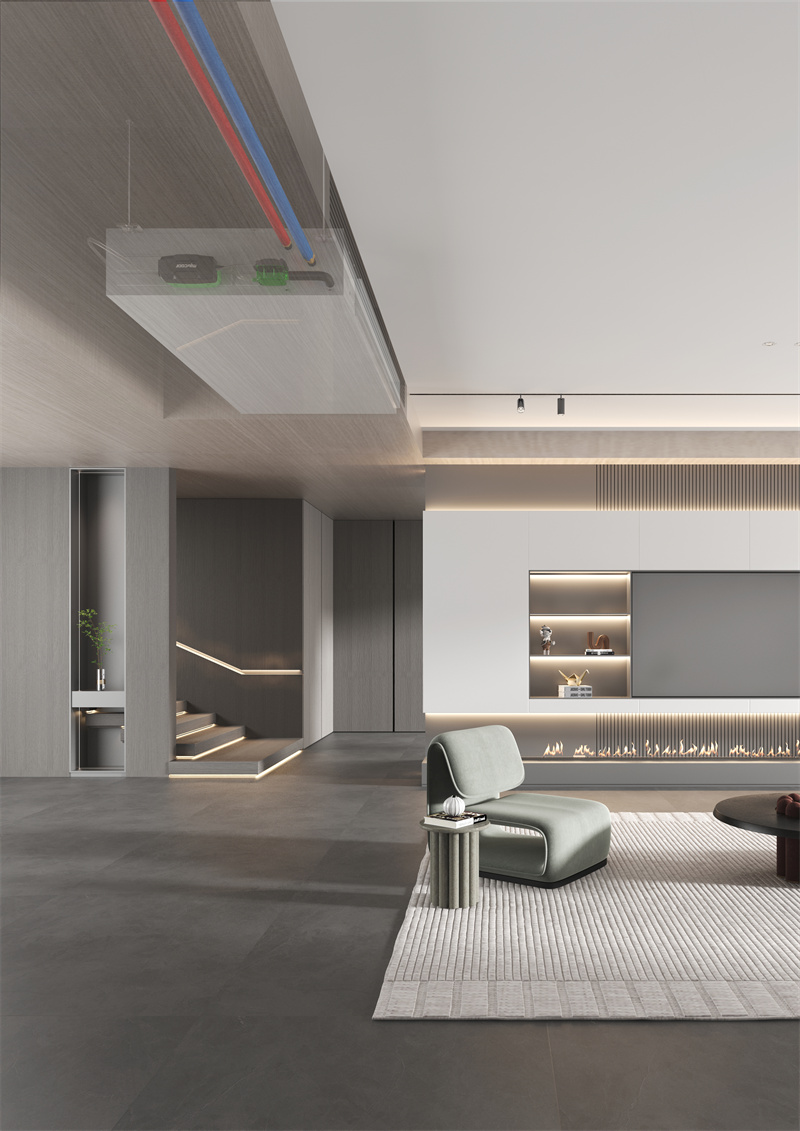

The P16/32 condensate pumps allow great installation flexibility. Perfect for fitting quickly and easily either above the false ceiling, behind wall-mounted evaporators or in the plastic conduit.

The P16/32 condensate pumps are designed to be installed:

• above the false ceiling where possible

• behind wall mounted evaporators

• in plastic conduit

By connecting the drain hose to the reservoir and placing the pump drive unit within the evaporator, condensate water can be pumped away to a suitable drain.

Featuring brushless motor and Float-less sensor, so it brings long service life with super quiet operation. Check operation status via the LED indicator in the product.

Suitable for
High wall split systems; Ducted units; Floor standing & Chassis units.Perfect for commercial and domestic units in quiet environments.

Model P16 P32
Voltage 100v-230V~/50-60Hz
Discharge Head(max.) 10m[33ft]
Flow Rate(max.) 16L/h(4.2GPH) 32L/h(8.5GPH)
Tank Capacity 35ml
Mini Splits up to 7.5kW/30,000btu/hr 12.5kW/45,000btu/hr
Sound Level at 1m 19dB(A) 21dB(A)
Ambient Temp. 0℃-50℃ 0℃-50℃
